Product Description

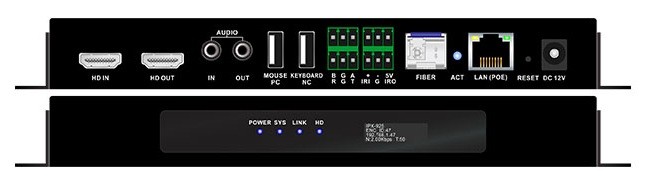

Innovative HKM430 series is a modular KVM and video wall over IP extender that deliver high quality video over IP to meet demanding KVM and video wall requirement. The solution is based on the standard IP technology, the unit can be configured as transmitter (TX) or receiver (RX), making installation & maintenance simple, transmitter encode input signals (HDMI, Audio, USB, RS232 & IR) into IP packets and Multicast/Unicast to Gigabit Ethernet switch. On the other end, Receiver (RX) received the IP packets from Ethernet switch then decod it back to HDMI, Audio, USB, RS232 and IR and send to display, speaker, USB devices etc.
HKM430 is perfect for AV Broadcasting, KVM Matrix Control, Video-Wall applications, entertainment, boardrooms, courtrooms, medical, military, and education digital signage.
Features
- Unit configure as Tx or Rx.
- Resolution up to 4K@30Hz 4:4:4.
- Support video scaling, 1080p to 4K upscale or 4K to 1080p downscale & video rotation.
- Extend up to 150m PoE CAT5e or 60Km over fiber cable.

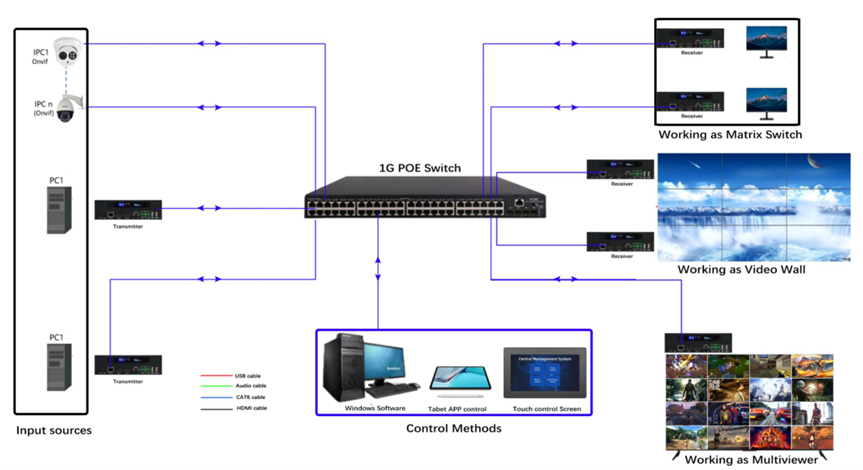

- Support point-to-point extension, distribution, switching and matrix installation.
- Support up to 8 x 16 video wall size.
- Multiple control methods via software, IR, API or hardware.
- Windows, Android or iOS controls video wall setting and switching.
- HDMI loop-thru for local display.
- Support USB, RS232, IR and audio over IP.
- Modular design and upgradeable; MxN virtual matrix supported.
