Product Description

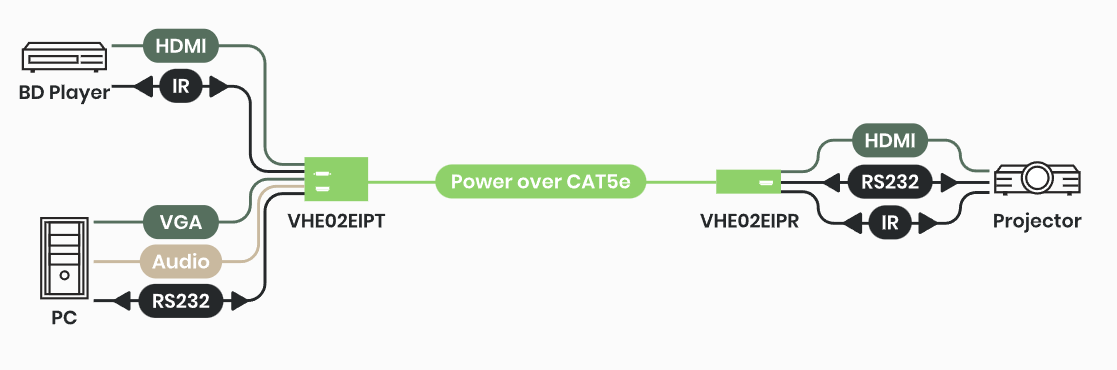

VHE02EIP is a HDMI/ VGA extender that can use an Ethernet cable to extend either HDMI or VGA with audio, bi-directional IR and RS232 signals with transmission distance up to 70M and resolution up to 4K@30Hz for HDMI, 1920 x 1200px for VGA. It is an ideal solution to send the signal from PC/laptop to display it on a projector/ monitor. With a metal face plate, the TX unit can perfectly fit on a wall or on a meeting table.
- Resolution up to 1920×1200@60Hz for VGA. 4K@30Hz for HDMI.
- Signal extension up to 70M over CAT5e (or greater) cable.

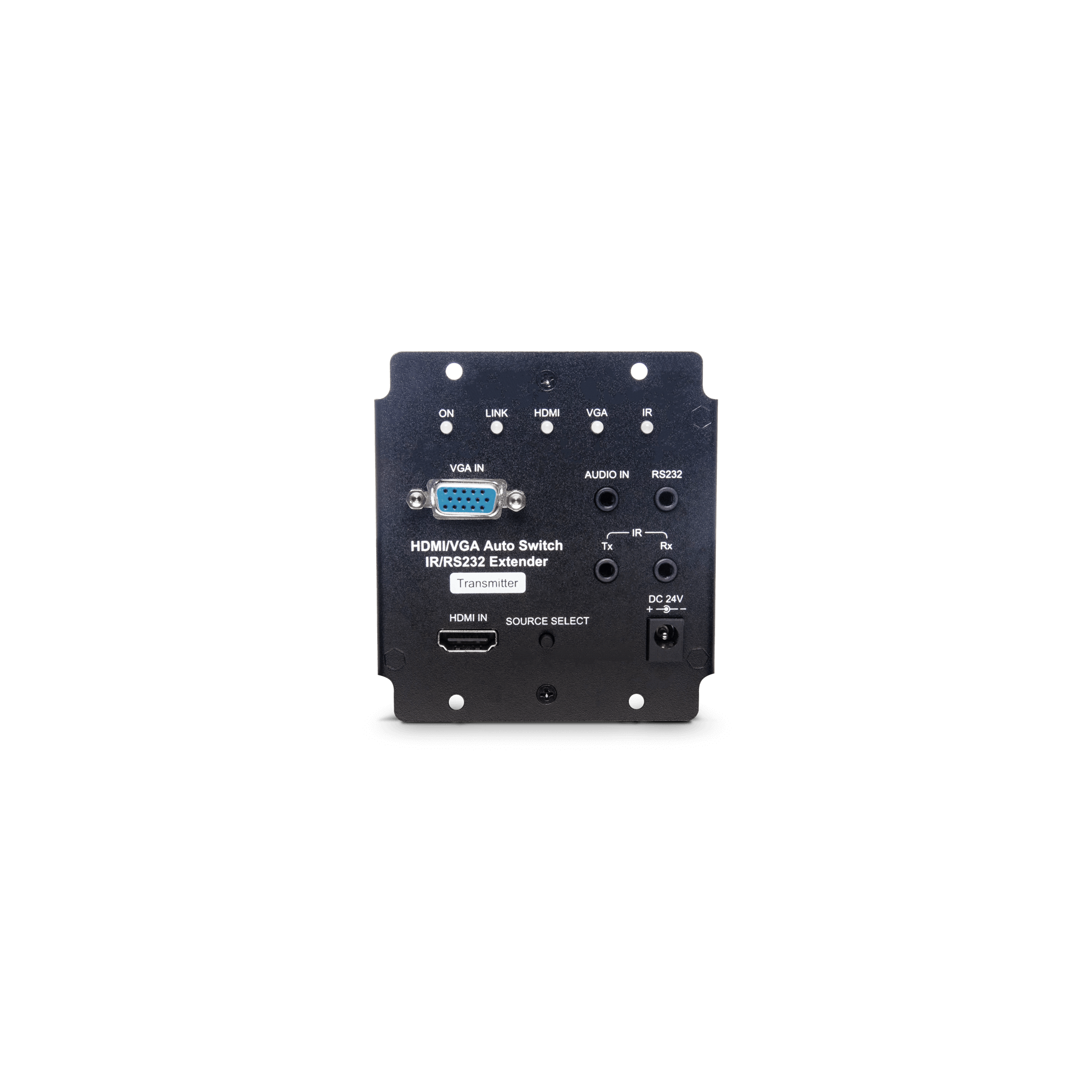

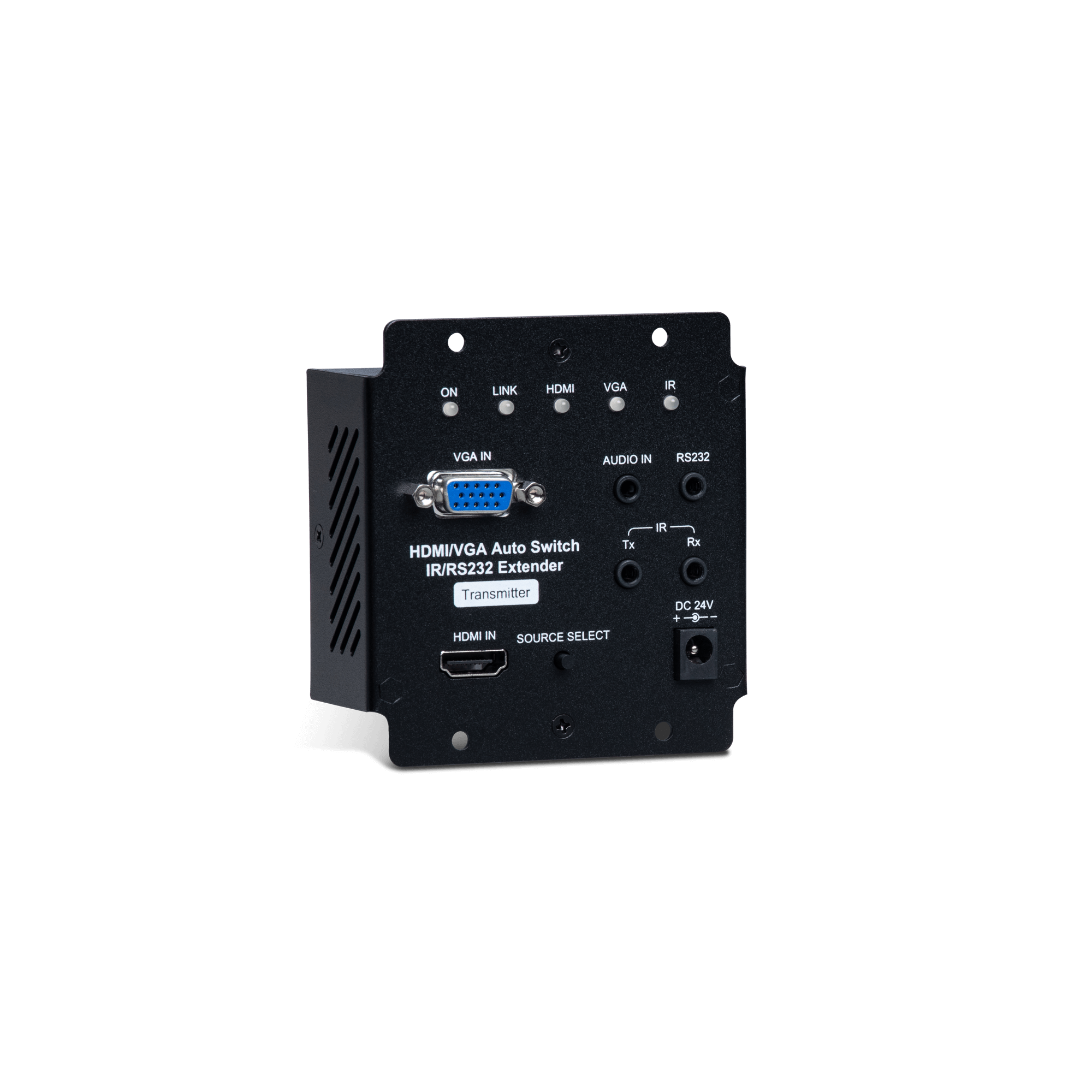

- Embeddable TX on a wall or a table.
- Supports PoH (Power over HDBaseT), power from either TX or RX unit.
- Supports VGA/ HDMI auto or manual input switching.
- Supports bi-directional IR, RS232, and CEC transmission.
