SHINYBOW SB-6800 HDMI over IP Series

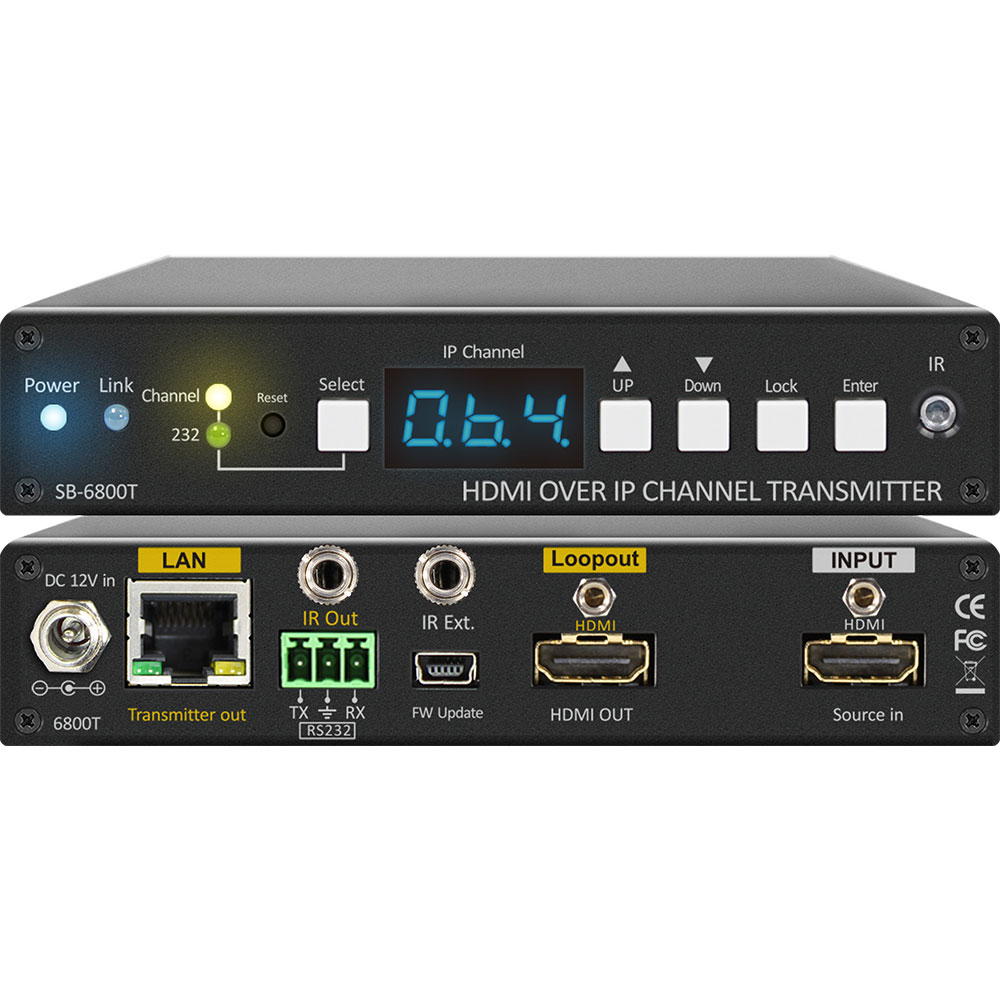

SB-6800T
HDMI Over IP Transmitter
Inputs : 1x HDMI
Outputs : 1x Ethernet (RJ-45), 1x Preview port
Controls : IR, RS-232, Keys on front the panel

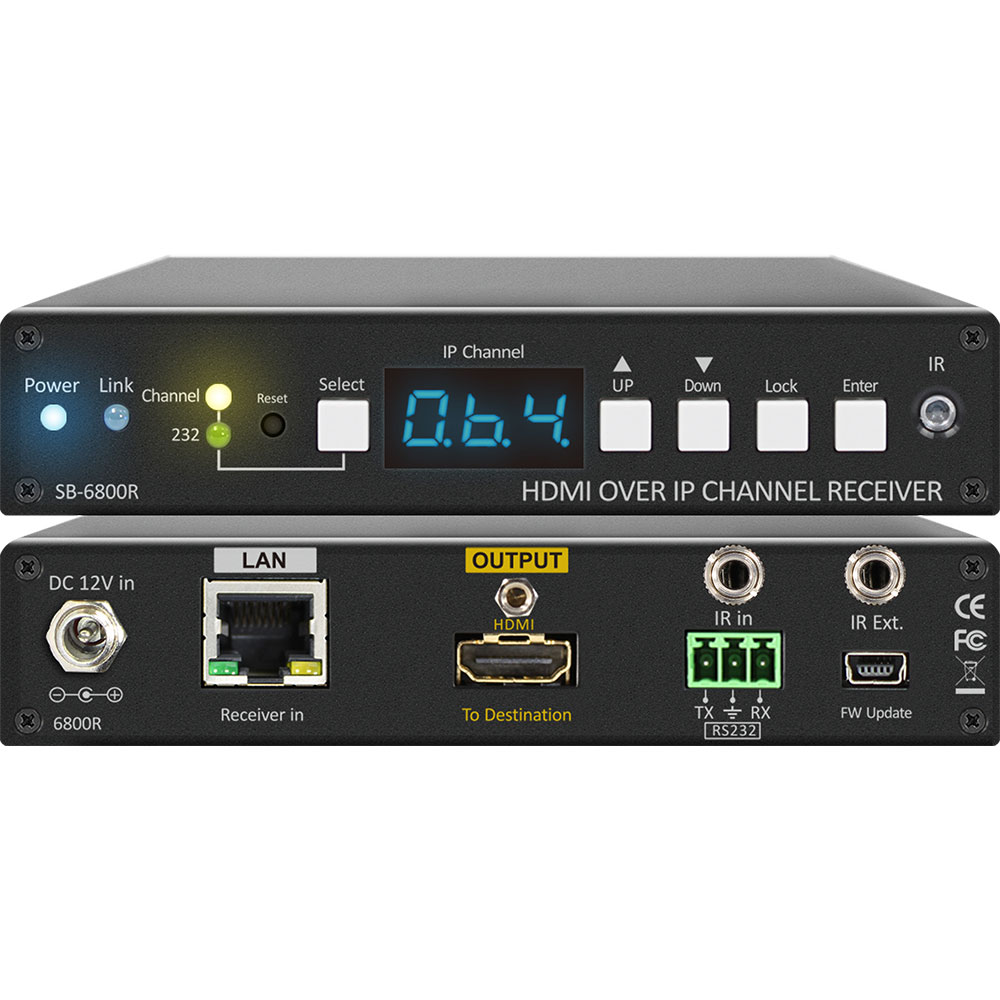

SB-6800R
HDMI Over IP Receiver
Inputs : 1x Ethernet (RJ-45)
Outputs : 1x HDMI
Controls : IR, RS-232, Keys on front the panel
Categories: ,

Product Description

Introduction

Features

  • Extend HDMI signal over IP (Lan HuB with IGMP function) category cable up to 100M.
  • Simply set up the Transmitter and Recevier to the same channel and all settings are
    automatically configured.
  • Support point to point or point to multipoint configurations.
  • Support HDMI 1080p@60 video, HDCP compliant.
  • Support link speeds of up to 148MHz.
  • Deep Color, Full HD 1080p@60Hz@24 bit pixels.
  • Support Digital Audio 7.1 LPCM 192KHz, 24bits, Full HD Dolby TrueHD and DTS-HD Master
    Audio uncompressed HD audio formats.
  • Support IP Transmitter (5) units to IGMP HUB. Channel 001~005.
  • Support IP Receiver (64) units, Select TX Channel 001~064.
  • Transfer IR and RS232 control signal together with the HDMI signal.
  • With LED indicators to show the POWER/LINK/Transmitter Channel status.
  • Uses a single category cable to transmit HDMI, RS-232 and IR control
    signals simultaneously.
  • Mounting wall mount pack supplied.
  • Power supply using universal power switch 50/60Hz,100~240VAC.

Specifications

  •  Type of Extender: HDMI Over IP Extender
  • Input Signals: HDMI
  • Signal Supports: HDMI 1.3 HDMI format Standard, DVI and HDCP Complian
  • Video Support: HDMI for 1080p (1920×1080) resolution
  • HDMI Audio I/O Supports: Multi Audio Formats 5.1 / 7.1, MAT(MLP), Dolby Digital,
    Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTS-HD,
    DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
  • Extend LAN Hub : GB Hub with IGMP function
  • GB Hub Linkage : IP Transmitter x5 units & IP Receiver x 64units (500M)
  • Cable Support: Category (CAT5e/6) cable
  • Support HDMI resolutions: 480p, 720p 1080i/1080p
  • Controls: 1x IR in, 1x RS232 I/O and LAN series interface
  • Transfer distance: Multi Mode, up to 100M (328 ft)
  • HDMI I/O connectors: HDMI Type A – SMD 19pin Female Type
  • Safety Approvals: CE
  • Dimensions (LxWxH): 5.31″ x 5.11” x 1″ (135mm x 130mm x 26mm)
  • Shipping Weight (net): 0.4175 kgs / 0.9125 lb
  • Power consumption : Max. 2000mA
  • Power Supply: Power Input +12VDC, 2A (Universal Type 50/60Hz, 100~240 VAC)
