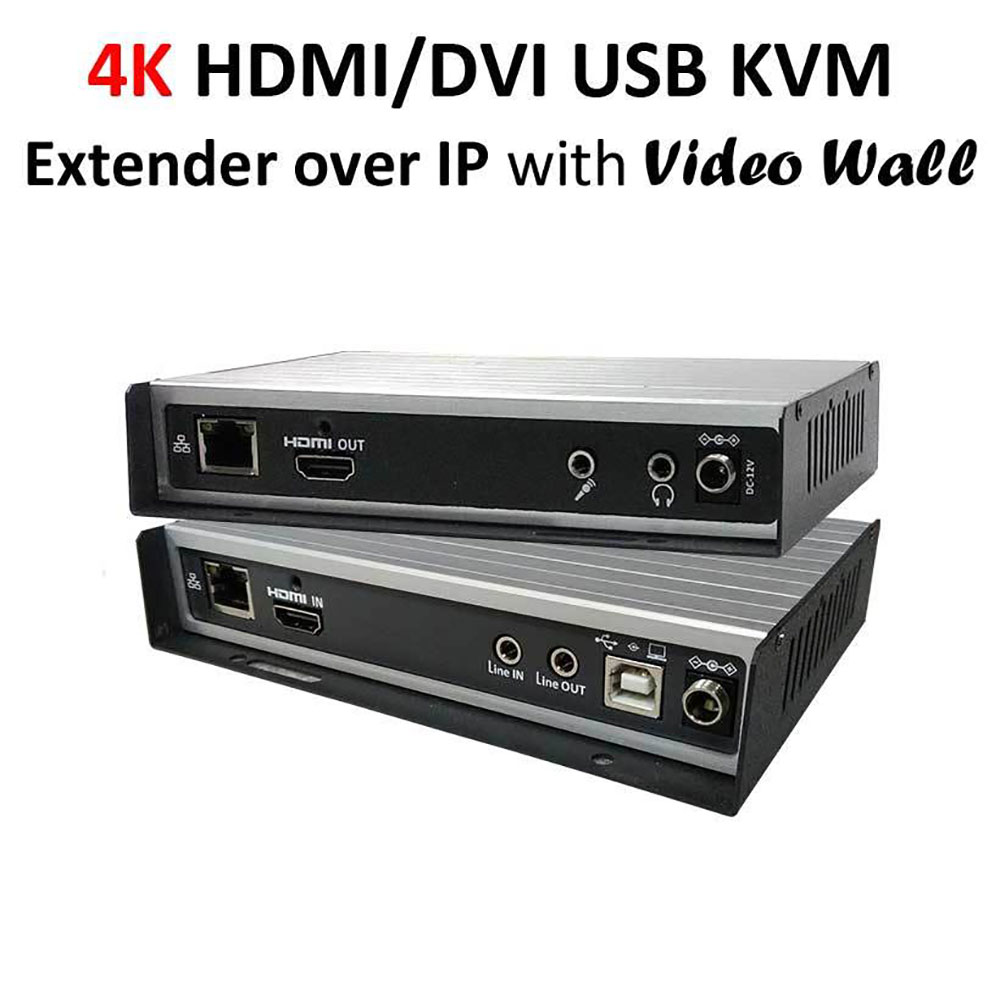

BEACON AV-9520 4K HDMI Video Wall over IP

SKU: AV-9520 Category:

Product Description

The AV-9520 is a perfect solution for 4K2K HDMI with USB/IR/RS232 over Gigabit IP Ethernet. The system includes AV-9520T Transmitter (TX) and AV-9520R Receiver (RX). The TX connects to PC or Blu-ray player for the 4K2K HDMI source, the RX connects to display, speaker, microphone, and USB devices.

The solution is based on the standard IP technology, the TX converts input signals (HDMI, Audio, USB, …) to IP packets and Multicast/Unicast to Gigabit Ethernet switch. On the other end of RXs, receiving IP packets from Ethernet switch then converts back to HDMI, Audio, USB… and send to display, speaker, USB devices. The 4K2K Encoder/Decoder engine built with Scaling function, multiple RXs are flexible to be configured as Video-Wall displays. Perfect for AV Broadcasting, KVM Matrix Control, Video-Wall applications like informational displays, entertainment, boardrooms, courtrooms, medical, military, and education digital signage.

Specifications

Front, Rear Panel View

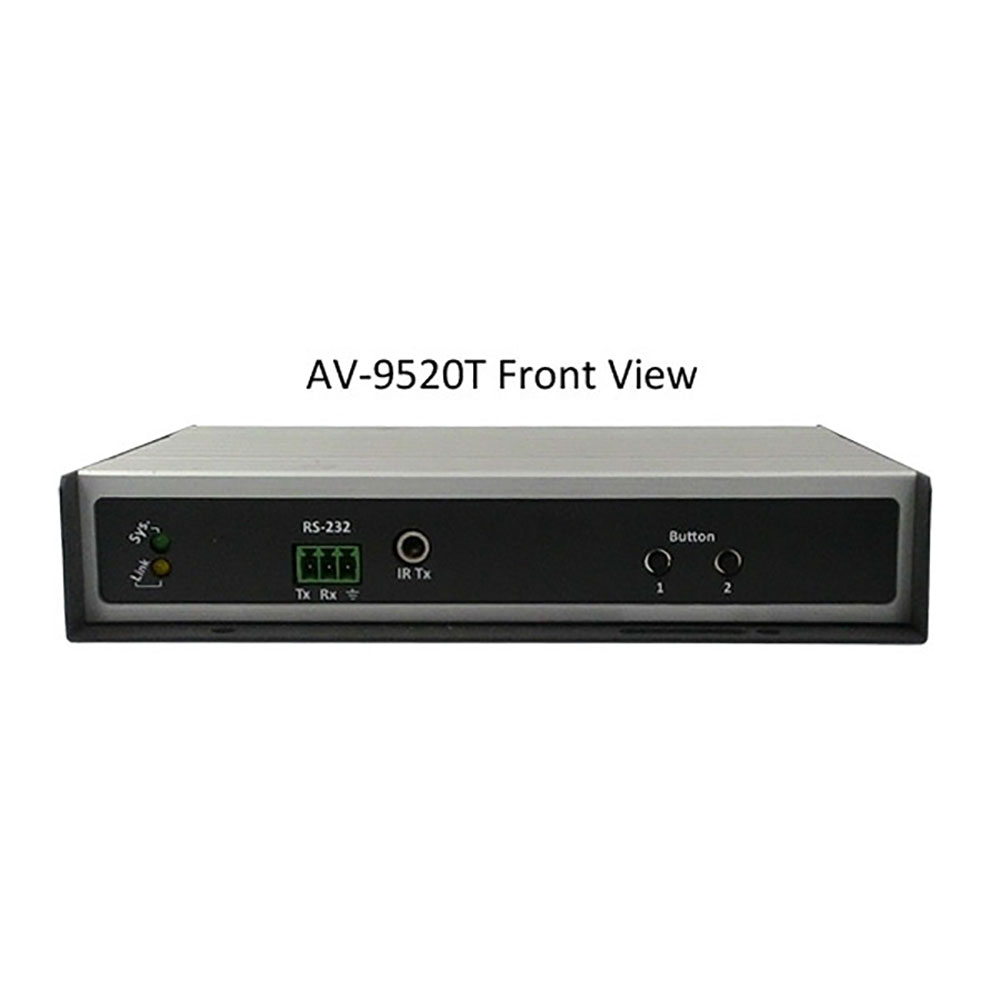

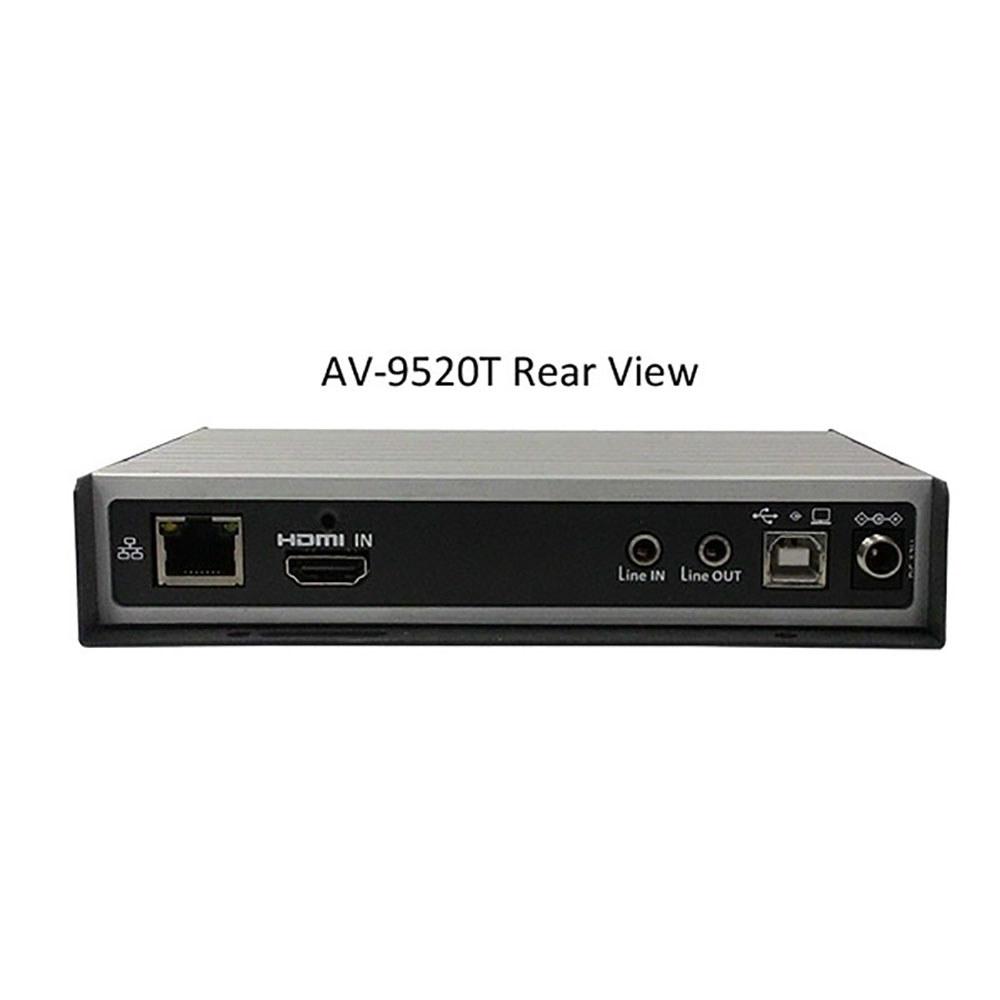

AV-9520T

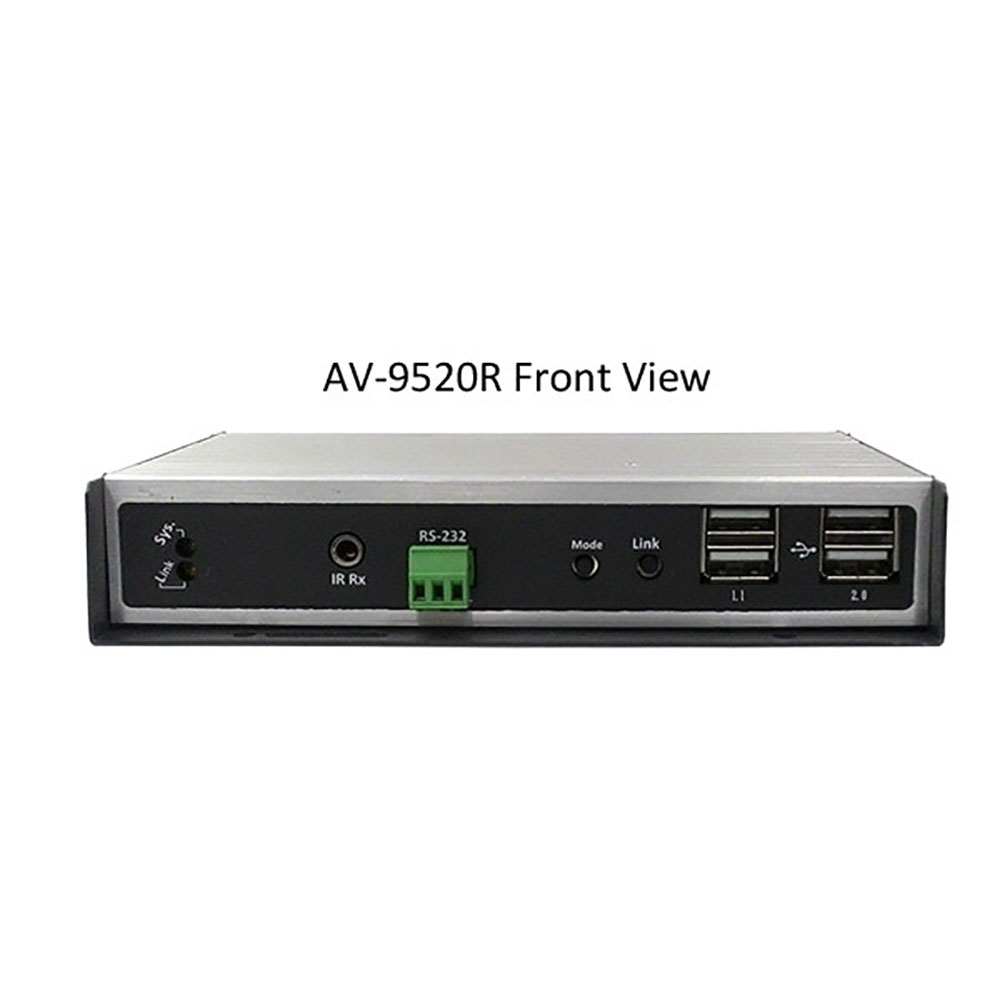

AV-9520R

Model No. Transmitter Receiver
AV-9520T AV-9520R
Connectors
HDMI Input
1 N/A
HDMI Output
N/A 1
Power DC 12V/2A
Network Port 1 x RJ45 Gigabit
USB Upstream (to PC) 1 N/A
USB to Devices N/A 2 x USB 2.0 + 2 x USB 1.1
Mounting Holes Yes
3.5mm Line-In 1 N/A
3.5mm Mic-In N/A 1
3.5mm Line-Out 1
IR remote control (option) 1 x IR Blaster 1 x IR Receiver
RS-232 Yes
Resolution 1080p or 4K2K (3840×2160@30Hz)
Inter-connect Cable CAT 6 / 7
Enviornment
Operation Temperature
0 ~ 50°C
Storage Temperature
-20 ~ 85°C
Humidity
0 ~ 80% Non-condensing
Physical Properties
Material
Aluminum
Weight
453g 458g
Dimension (L x W x H)
150 x 110 x 28 mm 150 x 110 x 28 mm

Features

  • Support 1080p or 4K2K HDMI (3840 x 2160) resolution..
  • All TX/RX are based on Gigabit Ethernet Switch, easy cabling, easy installation, easily maintain.
  • Support one-to-one (Unicast), one-to-many (Multicast) for Audio/Video real time broadcasting.
  • Support many-to-many Group Broadcasting if the Ethernet switch enabled the IGMP.
  • Support USB for KVM PC control, you can attach keyboard, mouse, touch screen, storage at the Receiver site to control the PC at the Transmitter site.
  • The 4K2K Encoder/Decoder engine built with Scaling function, multiple RXs are flexible to be configured as Video-Wall displays with 180, 270゜Rotation.
  • Support both HDMI and 3.5mm stereo audio, you can use speaker/microphone at the Receiver.
  • Support IR option, you can use the IR remote controller at Receiver site to control the set-top box at the Transmitter site.
  • Support RS-232 bridge option, you can send RS-232 data in between PC and screens.
  • Pure hardware design, plug-and-play, no any additional software installation required.
  • Built-in HTTP for the IP address, device name, Multi/Unicast, Baud Rate, … settings.
  • Provide Connection Manager Software for Transmitters/Receivers connection Management.
  • Provide Video-Wall Manager Software for Video-Wall Configuration and Operation Management.
  • FCC, CE, RoHS. compliant.

Applications

For Multiple Video Wall and remote KVM


For Multi-User, Multi-Server management


The switching time of a Rx between Txs


For Video Wall and Video broadcasting

For Surveillance System
