Digital remote server management that enables secure remote computer access using your standard IP network

Download Manual PDF

Product Description

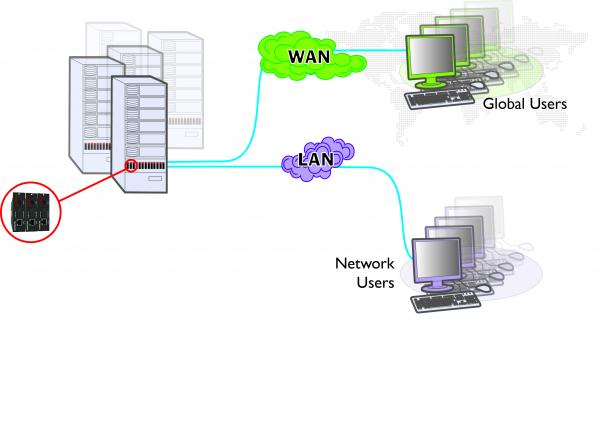

 Part of the ADDERLink® IPEPS range, the IPEPS Digital enables you to remotely access and control your critical computing hardware using your standard IP network. Using RealVNC client software, computers outside the network can be remotely and securely accessed.

  • Regulated access: the unit can be accessed remotely by up to four users at any one time
  • User management: sixteen user profiles can be created with defined access rights
  • In-built security measures: compliant with universal enterprise grade security standards (AES 256 bit encryption and RSA 2048 bit public key authentication), with added encryption of RealVNC
  • Compact and efficient: powered by a single USB connection, it takes up ‘Zero U’ on your rack
  • Product Features
  • RealVNC server with RFP 3.3 support: up to sixteen users can remotely and securely access computers outside your network
  • High performance video over VNC: Real VNC enables video resolutions of up to 1600×1200  as it is free of the limitations of HTTP
  • USB and Virtual media support: engineered to act as a conduit through which data can be passed so that files can be transferred via IP onto the IPEPS and onto the target computer by means of a USB virtual media port
  • Choice of power source: can be powered from two USB cables or independently from an external 5V power source
  • Independent operation: maintain full control even during boot up, BIOS level or computer crash states, it will even work even if the controlled devices are not operational
  • ADDER.NET Enterprise Management Software: provides a centralised, secure and intuitive user access management interface, where up to sixteen user profiles with defined access rights can be created



Supports standard PC, Sun and Mac video modes up to resolutions of 1600×1200 with scalable viewer

Approvals / Compliance

  • CE
  • FCC


USB1.1 (Low and Full Speed)

Cable Requirements



0 – 40 deg C / 32 to 104 deg F

Connectors – Remote Unit

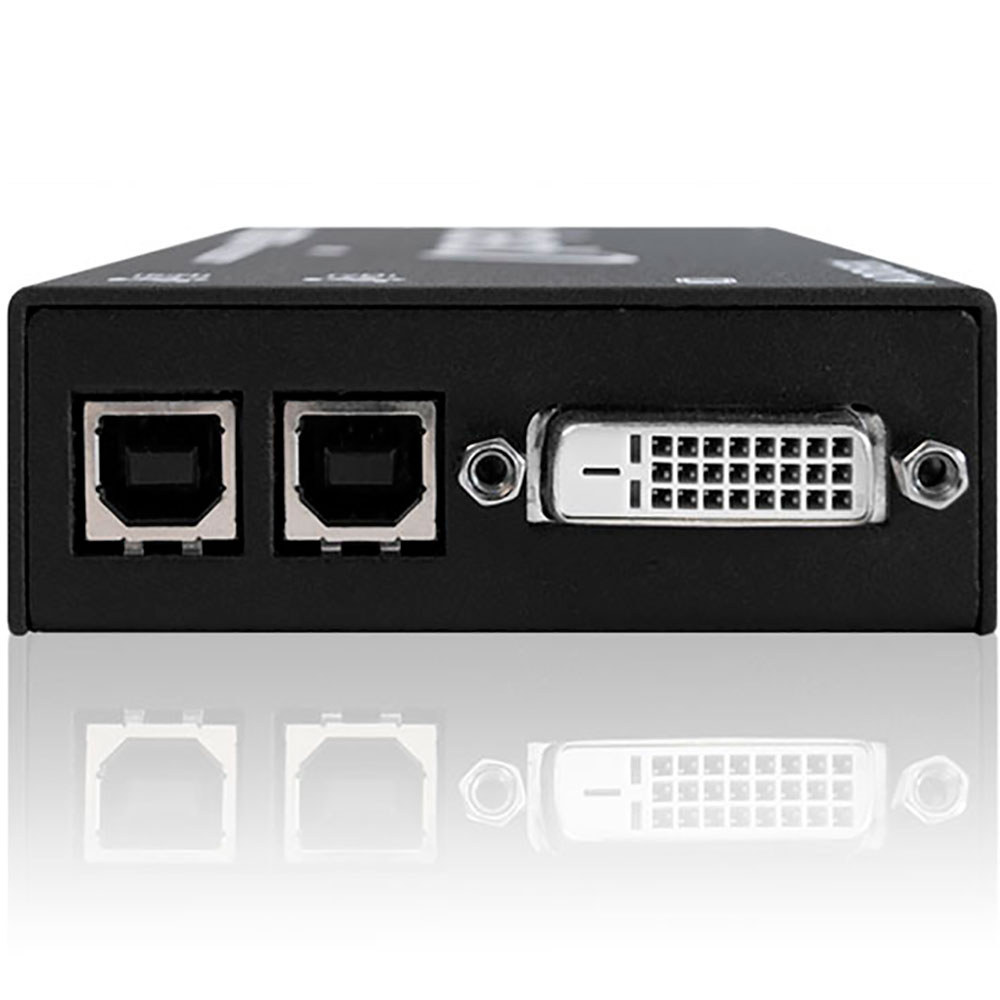

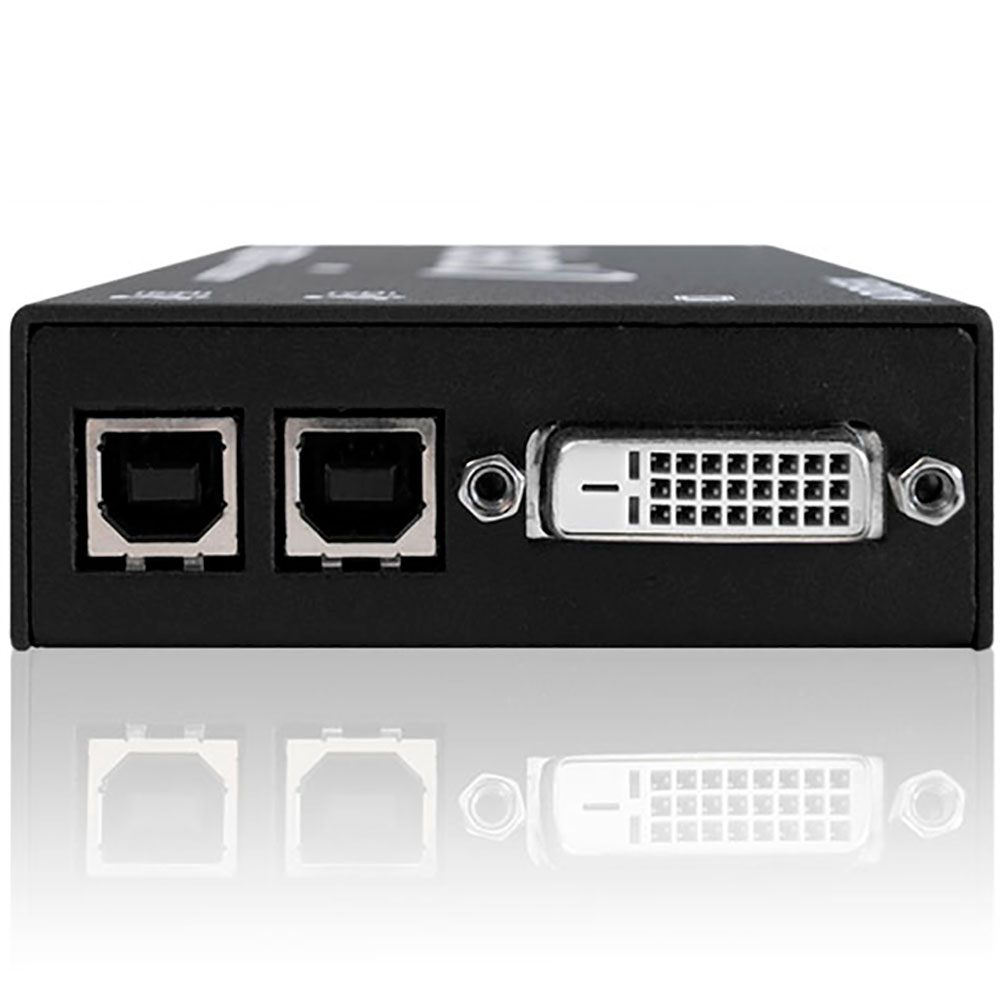

Video: DVI Single link USB2.0 Type B connectors

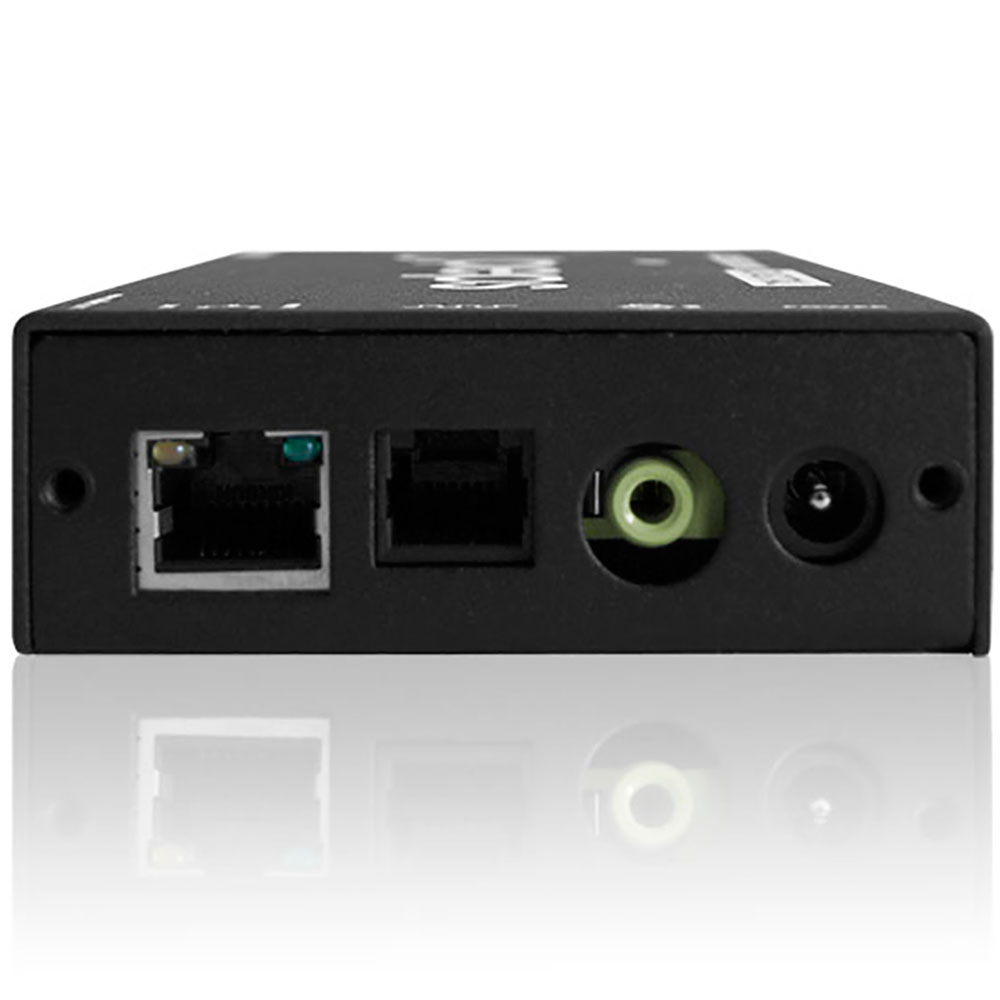

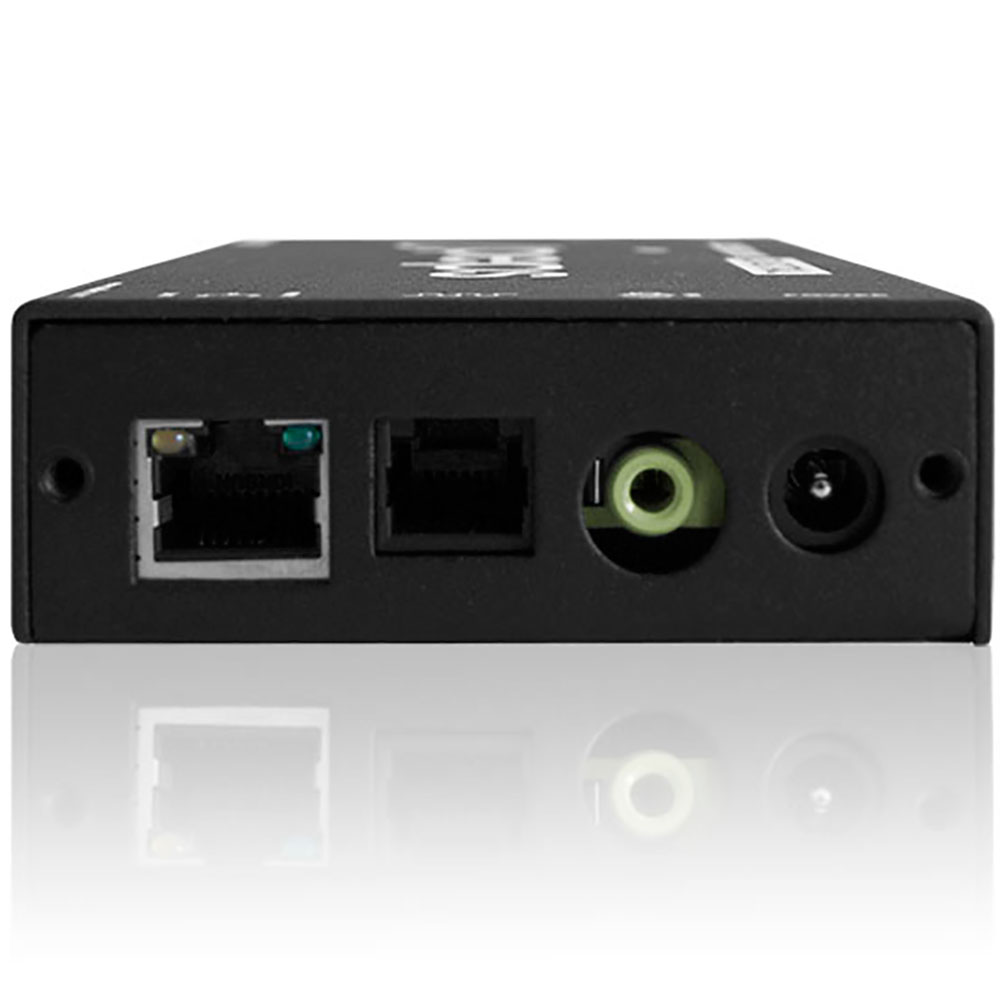

Ethernet: RJ45 10/100 auto sensing

RS232: 6p6c connector


IPEPS 120mm/4.72 (w), 27mm/1.06 (h), 75mm/2.95 (d), 0.34kg/0.76lbs


Two USB cables or independently from an external 5V power source 100-240 VAC 50 – 60Hz

Externally powered from 100-240VAC, 47/63Hz- 5v – 2.5amp


All known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare etc
